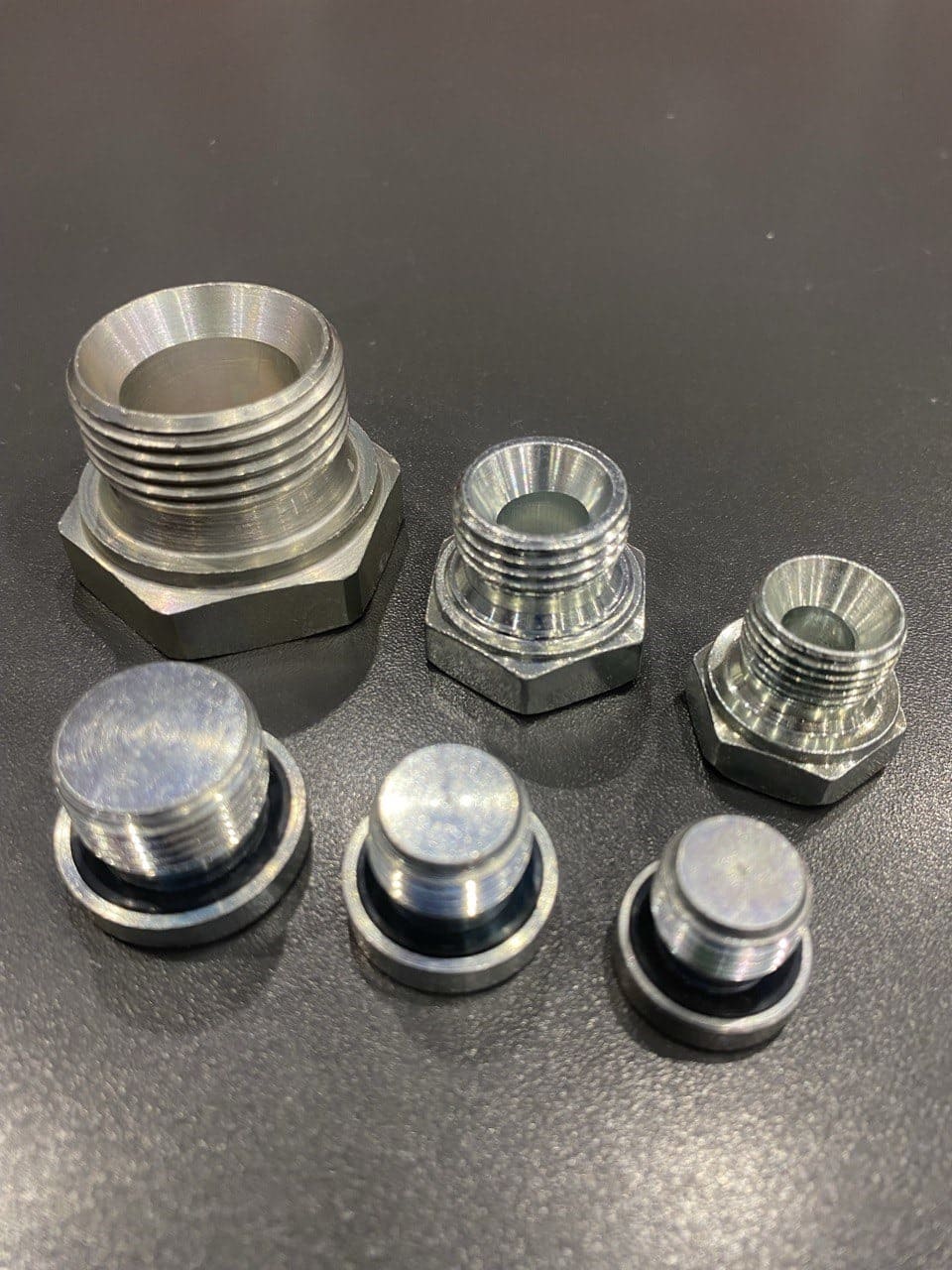

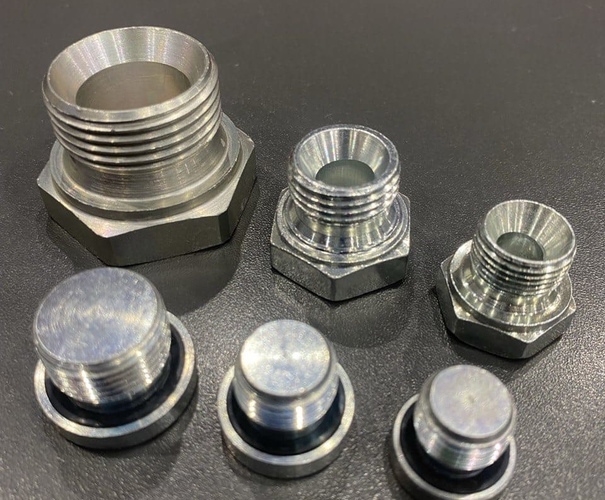

Заглушка-штуцер
| Серия | Давление, Bar | Ø трубы, метрический | Ø трубы, в дюймах | JIC 37° | L1 | CH1 |
|---|
 |
450 |
6 |
1/4" |
7/16" - 20 |
21,0 |
14 |
| 8 |
5/16" |
1/2" - 20 |
21,0 |
14 |
| 350 |
10 |
3/8" |
9/16" - 18 |
21,9 |
17 |
| 12 |
1/2" |
3/4" - 16 |
24,3 |
22 |
| 14-15-16 |
5/8" |
7/8" - 14 |
28,7 |
24 |
| 18-20 |
3/4" |
1. 1/16"- 12 |
33,1 |
30 |
| 290 |
25 |
1 |
1. 5/16" - 12 |
33,9 |
36 |
| 240 |
28-30-32 |
1 ¼" |
1. 5/8" - 12 |
37,2 |
46 |
| 35-38 |
1½" |
1. 7/8" - 12 |
42,5 |
50 |
| 105 |
50 |
2" |
2. 1/2" - 12 |
52,6 |
65 |
Заглушка штуцер под шестигранник
| Серия | Давление, Bar | W | L1 | L2 | D1 | CH1 |
|---|
|
450 |
7/16" – 20 |
12,0 |
9,1 |
14,0 |
6 |
| 1/2" – 20 |
12,0 |
9,1 |
16,0 |
6 |
| 350 |
9/16" – 18 |
12,7 |
10,0 |
17,5 |
6 |
| 3/4" – 16 |
14,8 |
11,1 |
22,0 |
8 |
| 7/8" - 14 |
16,5 |
12,7 |
25,5 |
10 |
| 1. 1/16"- 12 |
19,5 |
15,1 |
32,0 |
12 |
| 290 |
1. 5/16" - 12 |
19,5 |
15,1 |
38,0 |
17 |
| 240 |
1. 5/8" - 12 |
19,5 |
15,1 |
48,0 |
22 |
| 1. 7/8" - 12 |
19,5 |
15,1 |
54,0 |
22 |
Заглушка с внутренней резьбой
| Серия | Давление, Bar | W | L1 | CH1 |
|---|
|
450 |
7/16" - 20 |
17,0 |
17 |
| 1/2" - 20 |
17,0 |
17 |
| 350 |
9/16" - 18 |
17,0 |
19 |
| 3/4" - 16 |
21,0 |
24 |
| 7/8" - 14 |
24,0 |
27 |
| 1. 1/16"- 12 |
26,0 |
32 |
| 290 |
1. 5/16" - 12 |
29,0 |
38 |
| 240 |
1. 5/8" - 12 |
31,0 |
50 |
| 1. 7/8" - 12 |
35,0 |
55 |
| 105 |
2. 1/2" - 12 |
- |
- |
